Source
-
Light source type: 1500 W White LED engine
LED engine life expectancy: 20.000 hrs
Color Temperature：8500K -

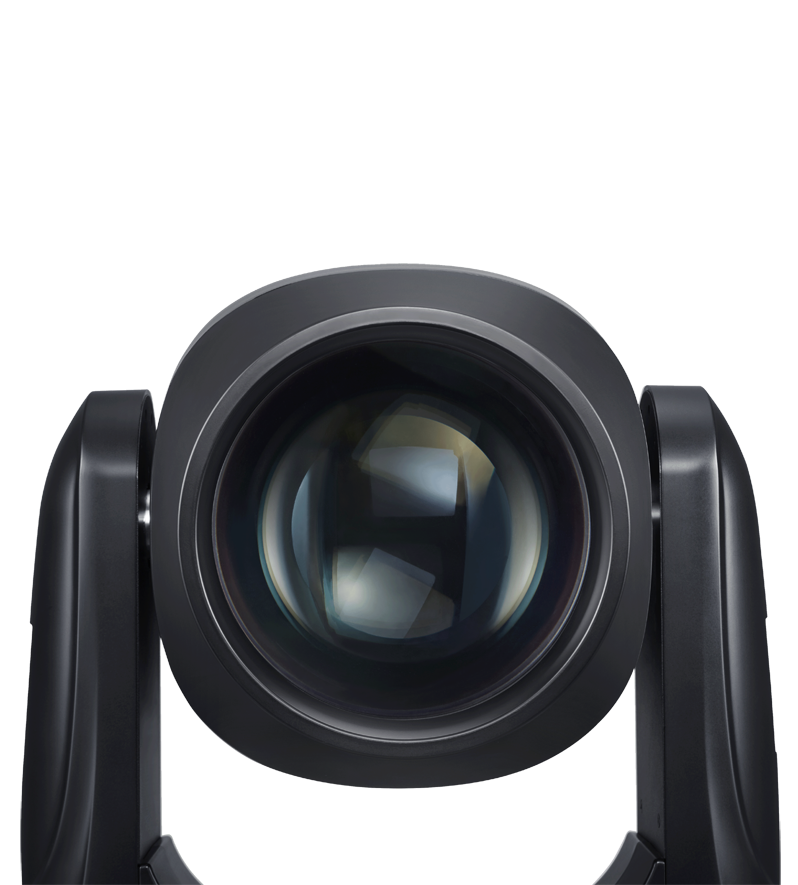

Optical System
-
Zoom range 2°– 26°
-
Control and Programming
-
Protocols: USITT DMX-512
WDMX，RDM
DMX protocol modes: 2
Control channels: 15, 20
-

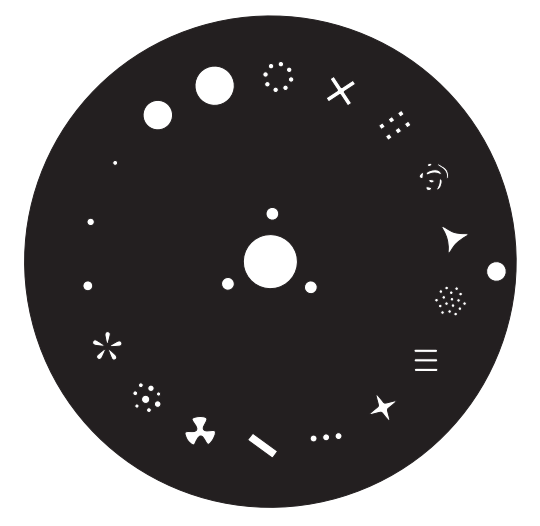

Static Gobos
-
Image diameter: 5 mm
Thickness: 0.5 mm
Material: Aluminiu
-
Rotating Gobos
-
Outside diameter: 12.0 mm
Image diameter: 8.0 mm
Thickness: 1.1 mm
Max. Thickness: 3.0 mm
Material: High temperature borofloat or better glass -
Thermal Specification
-
Maximum ambient temperature: 45 °C (113 °F)
Maximum surface temperature: 55 °C (176 °F)
Minimal operating temperature: -15°C (23°F) -
Electrical Specification
-
Power supply: Electronic auto-ranging
Input voltage range: 100--240 V, 50/60 Hz
Power consumption: 400 W at 230 V / 50 Hz
Power in connector: powerCON TRUE1
DMX and RDM data in / out: 3-pin or 5-pin XLR -
Mechanical Specification
-
Height: 580 mm – head in vertical position
Width: 236 mm
Depth:348 mm
Weight: 18.3 kg -
Rigging
-
Mounting points: 2 pairs of 1 -turn locking points
2x Omega brackets with 1-turn quick locks
Universal operating position
