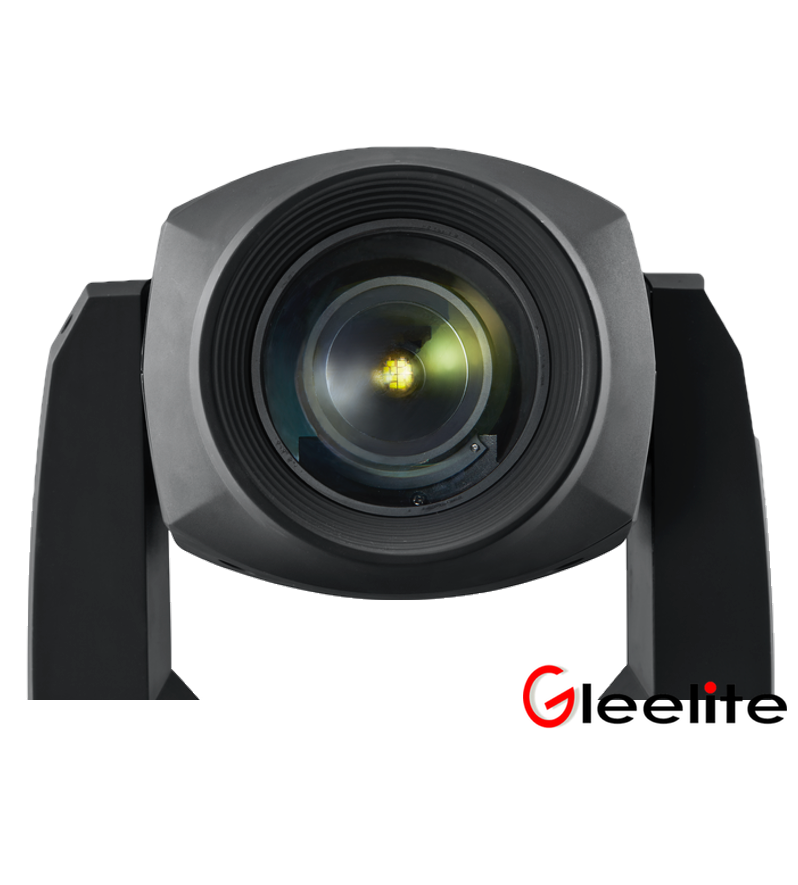

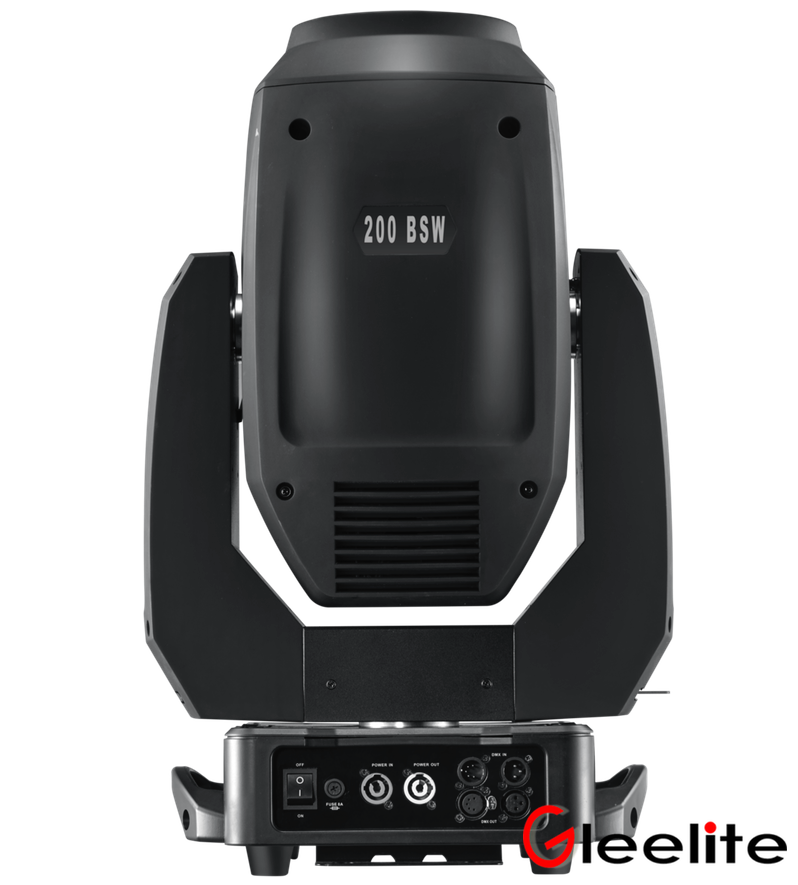

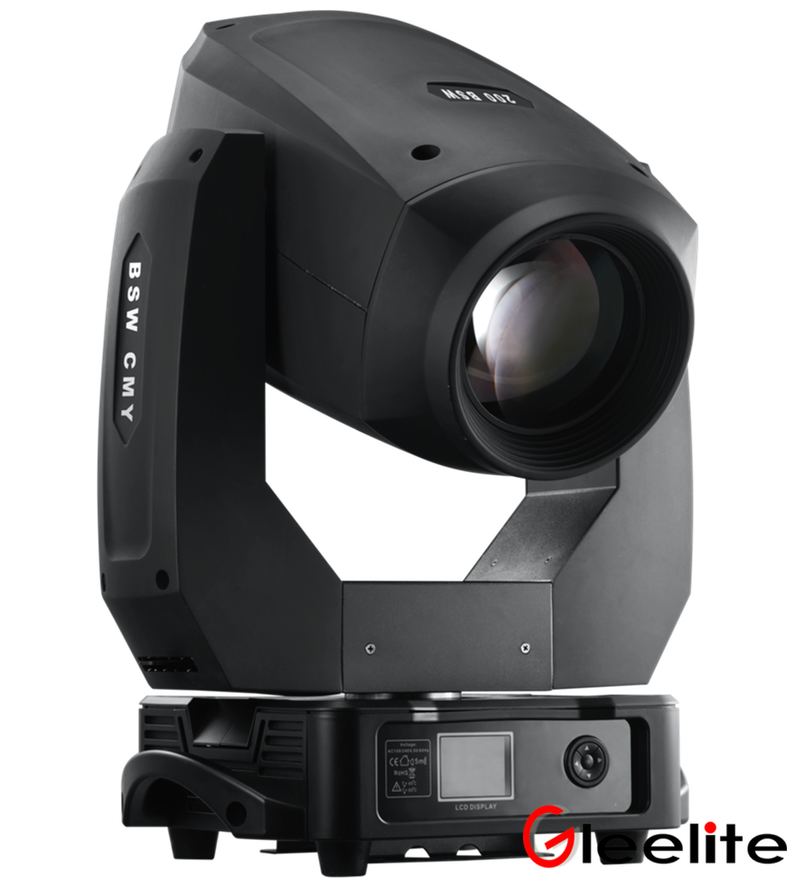

GL200BSW

GLS 200BSW would combines brightness of exceptionally clear zero-fringing white beam together with continuous color transitions of CMY mixing. Elegant and lightweight, packed with smart effects that are easy to use. The fixture is very powerful yet consumes little energy.Though power consumption less than 350W,it has Incomparable brightness. The 220W white LED light engine gives an extra punchy beam and an incredible 20.000 hours of operation,the lamp chip is made by Osram. In fact, no relamping will be needed for the entire life of the fixture! Smooth color transition and fixed vivid and radiant colors can be applied from unique system of three color wheels, and rotating or static gobos added for projections or mid-air effects. The smooth zoom can go out to 40 degrees at its widest and be softened it up with variable frost to create a gentle wash-like output or dynamic background projections. The minimum 5° zoom produces a piercing beam that can be trimmed with ultra-fast stepless iris for really punchy output.We think highly of every details of GLS200BSW.The smoothly of the rotating gobo,the 3 facet circular prism and 3 facet linear prism’s superposition design,the noise and temperature’s control etc. would bring you special feeling.

  • Light source

    200W White LED engine

  • LIGHT OUTPUT

    43700 Lux /5 m

  • Zoom range

    5°- 42°

  • Effects

    Static gobo,Rotating gobo、3 facet circular prism,8 facet circular prism,Prism superposition;CMY color-mixing system

technical

specification

  • Source

      Light source type: 200 W White LED engine
      LED engine life expectancy: 20.000 hrs
      Color Temperature:7500K
  • Optical System

      Zoom range 8°– 40°
  • Control and Programming

      Protocols: USITT DMX-512
      Wireless CRMX™ technology from Lumen Radio (on request)
      DMX protocol modes: 2
      Control channels: 30, 25
      Pan/Tilt resolution: 16 bit
      Movement control: Tracking and vector
      CMY: 8 bit
      Color wheel positioning: 8 bit
      Rotating gobo wheel positioning: 8 bit
      Static gobo wheel positioning: 8 or 16 bit
      Gobo indexing & rotation: 8 or 16 bit
      Iris: 8 or 16 bit
      Frost: 8 bit
      Zoom: 8 or 16 bit
      Focus: 8 or 16 bit
      Dimmer (Internal 18 bit): 8 or 16 bit
      Built-in analyser for easy fault finding

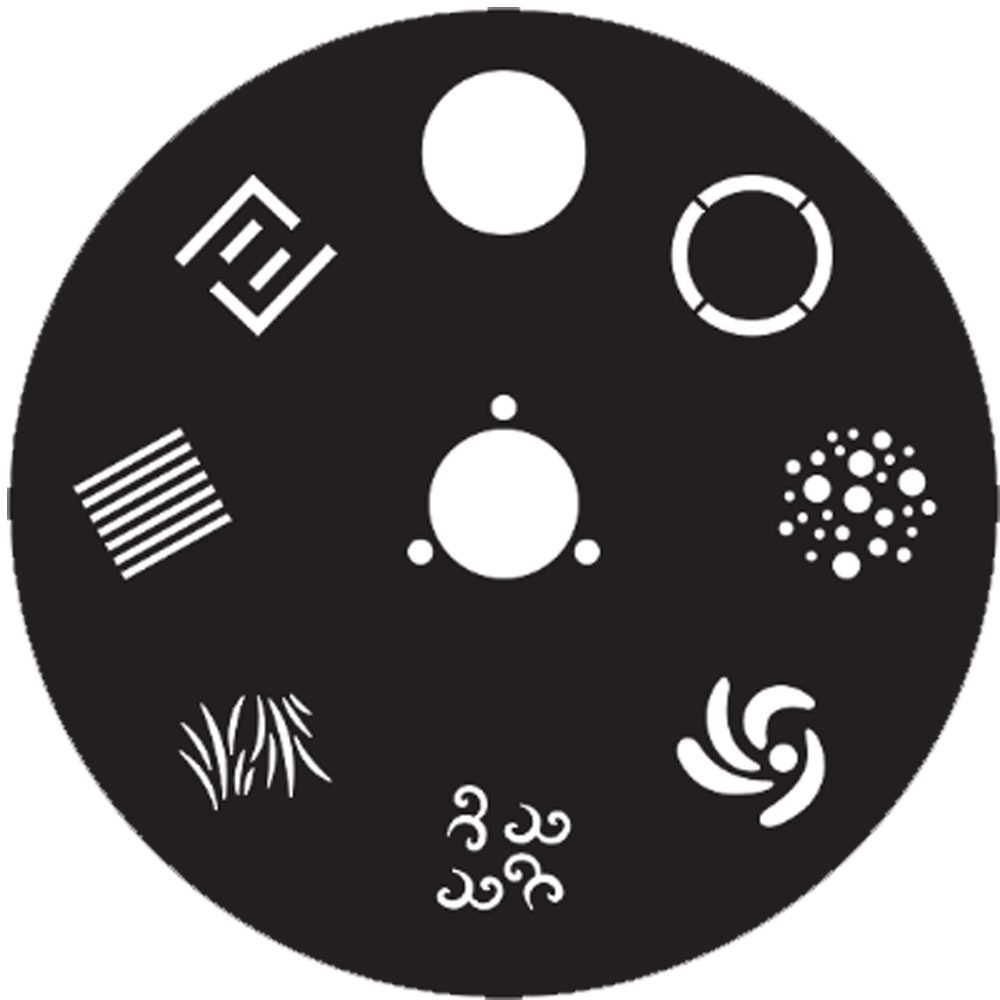

  • Static Gobos

      Image diameter: 23.0 mm
      Thickness: 0.5 mm
      Material: Aluminiu

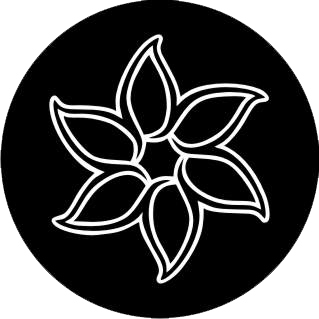

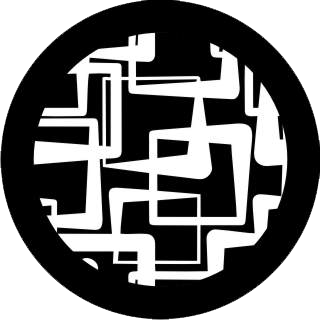

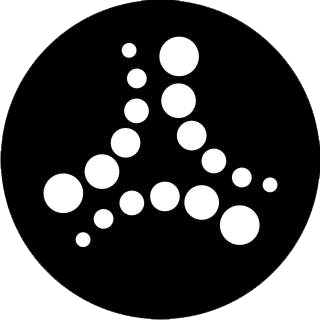

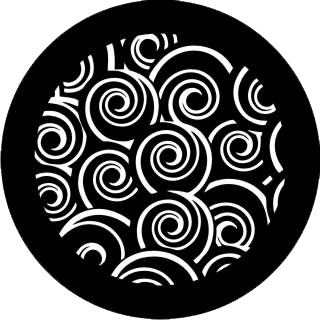

  • Rotating Gobos

      Outside diameter: 24.0 mm
      Image diameter: 21.0 mm
      Thickness: 1.1 mm
      Max. Thickness: 6.0 mm
      Material: High temperature borofloat or better glass
  • Thermal Specification

      Maximum ambient temperature: 45 °C (113 °F)
      Maximum surface temperature: 80 °C (176 °F)
      Minimal operating temperature: -5°C (23°F)
  • Electrical Specification

      Power supply: Electronic auto-ranging
      Input voltage range: 100–240 V, 50/60 Hz
      Power consumption: 400 W at 230 V / 50 Hz
      Power in connector: Neutrik powerCON TRUE1
      DMX and RDM data in/out: Locking 3-pin & 5-pin XLR
  • Mechanical Specification

      Height: 670 mm (26.4") – head in vertical position
      Width: 280 mm (11.0")
      Depth: 220 mm (8.7") – head in horizontal position
      Weight: 18 kg
  • Rigging

      Fixation option: Pan/Tilt-lock mechanism
      Mounting points: 2 pairs of 1 -turn locking points
      2x Omega brackets with 1-turn quick locks
      Universal operating position
      Pan and Tilt transport locks
GL200BSW

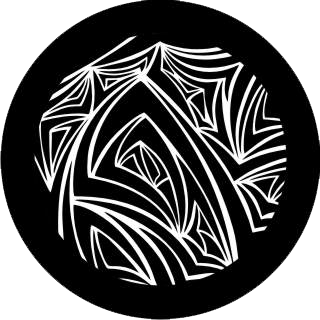

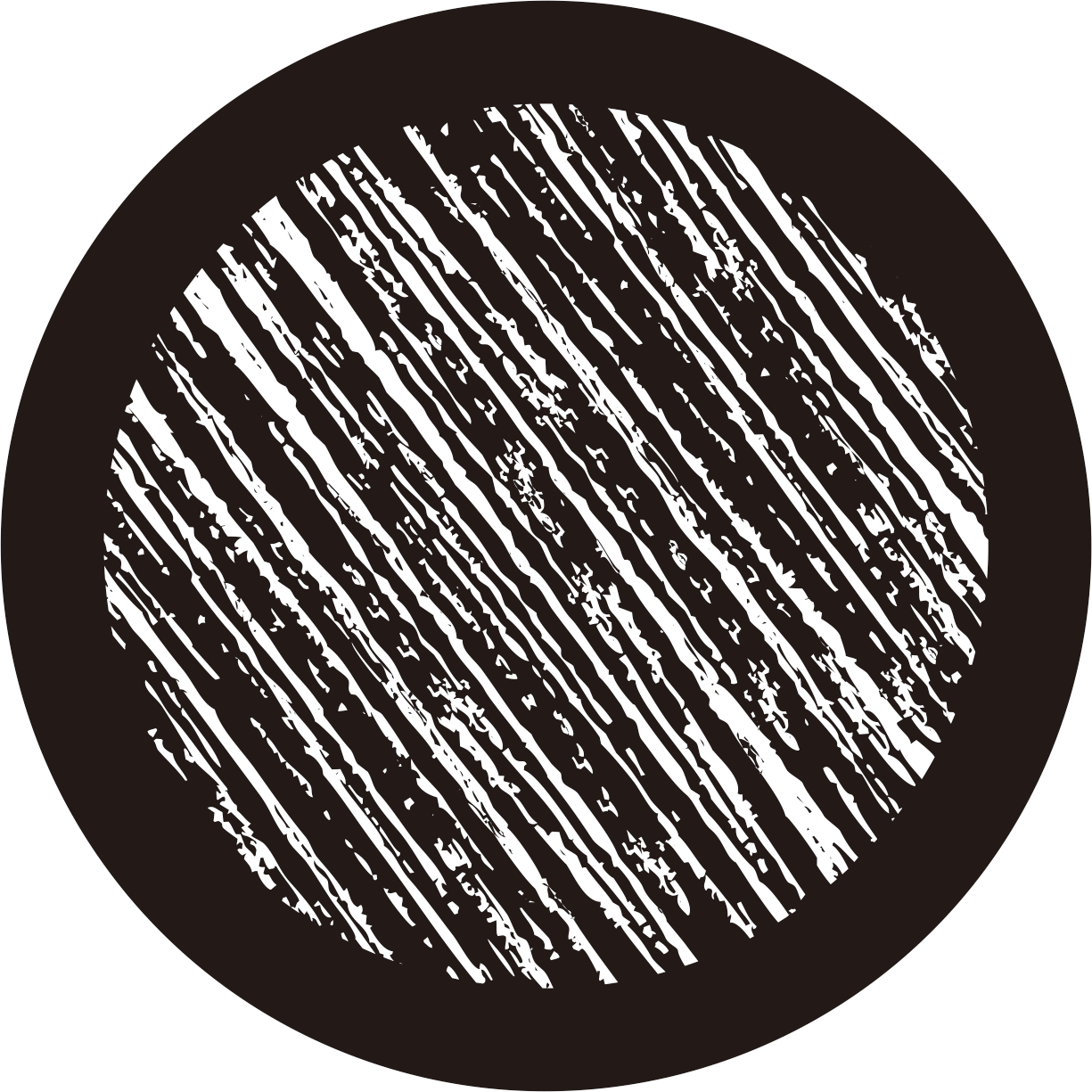

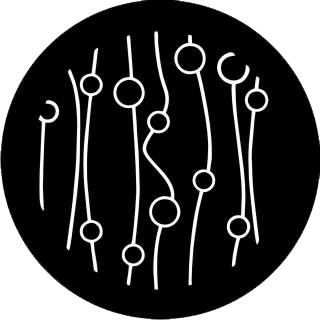

gobos & colors
