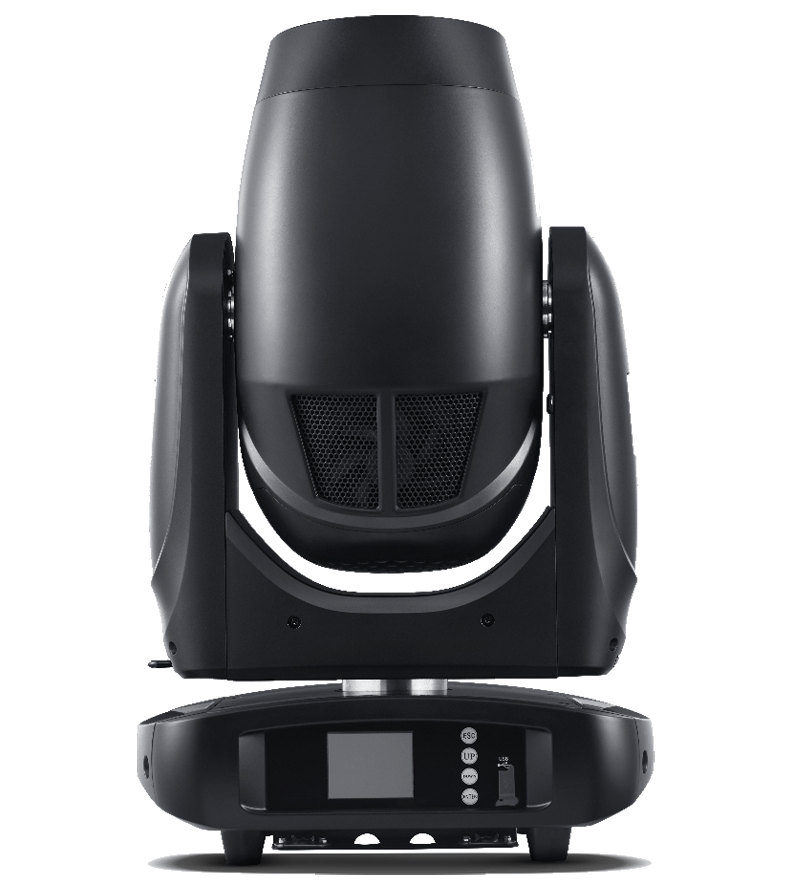

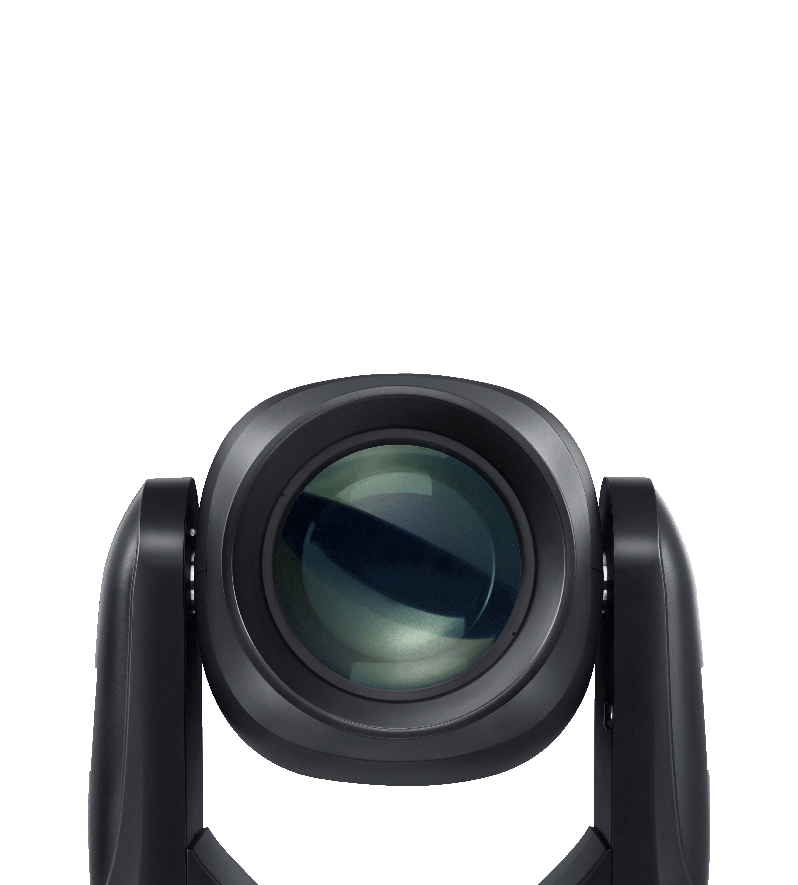

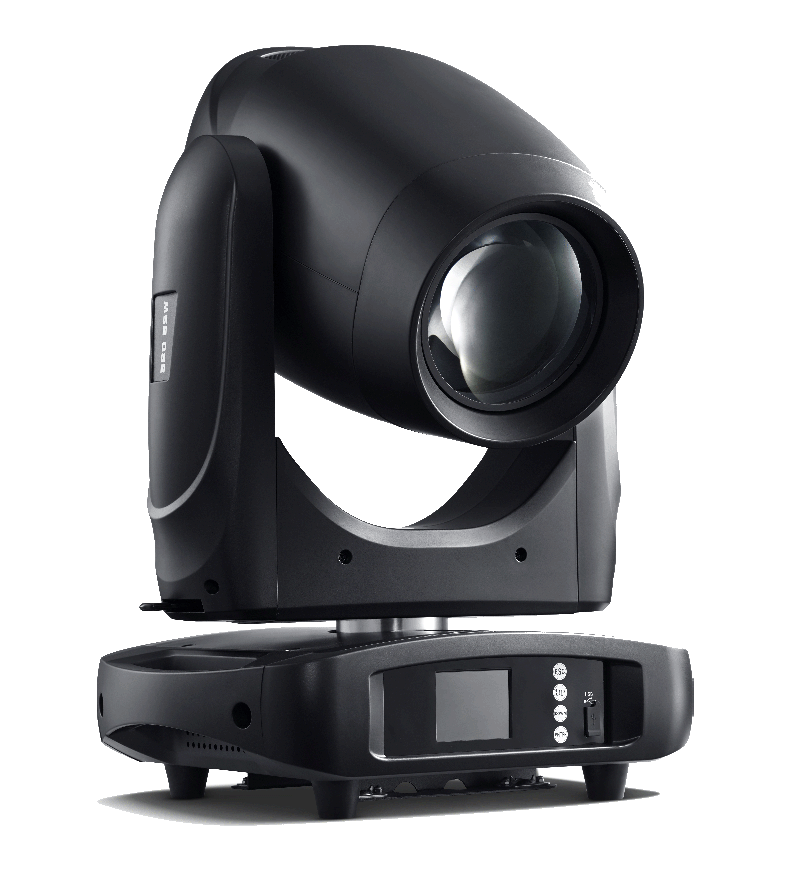

GL 380 BSW It’s very bright and super-fast with a sharp parallel beam that cuts through the air and across video with ease. It can project a static or rotating glass gobo to produce precision in-air and surface images with an even focal plane.Tight or at full 40 degree zoom, the output is crystal clear and brilliant. Add in either rotating, 6 facet linear or 8 facet circular,prisms to create wide reaching effects across any set. Drop in the frost filter and use any of the 11 rich colors to create a smooth even wash.The GL380 has an output far greater in size, quality and power than seems possible from it’s small, lightweight body -due to the efficient short arc 380 W discharge source and the new optical configuration. This new technology fixture even travels efficiently in a case of 4 and will cover all your needs-Beam, Spot, Wash, there is no point in using any other fixture.

  • Light source

    YODN 380 R18YOU or Philips MSD Platinum 300S Flex(6000 hours of service life)


    Beam 420000 lx @ 10M; Spot mode 5200 lx 10M (YODN)

  • Zoom range

    2°- 40°

  • Effects

    rotating and static gobo wheel, 6 facet linear prism and 8 facet circular prism



  • Source

      Light source type: 380W Discharge short arc lamp with integrated reflector light source life expectancy:YOND 2000 hrs; Philips 6000 hrs Color Temperature:8000K
  • Optical System

      Zoom range 2°– 40°
  • Control and Programming

      Protocols: USITT DMX-512
      DMX protocol modes: 2
      Control channels: 15, 20

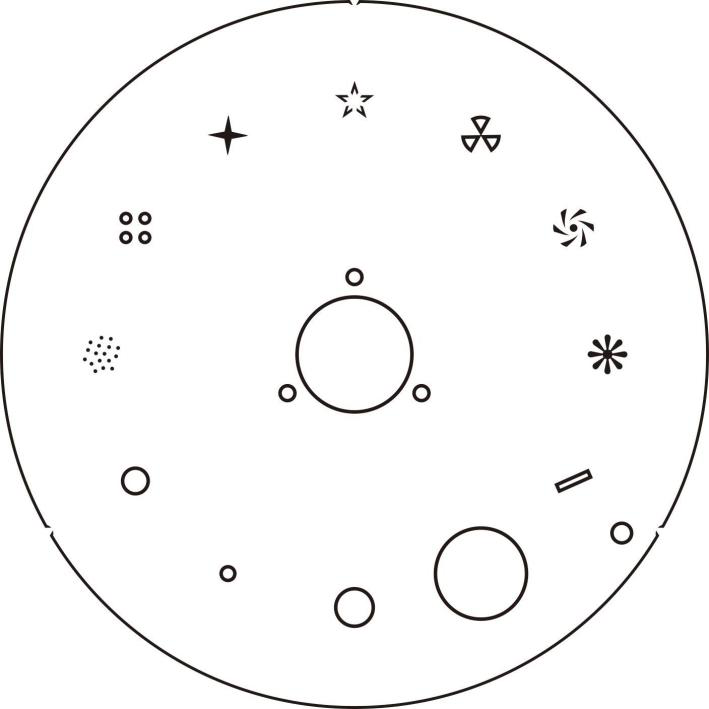

  • Static Gobos

      Image diameter:6.5mm
      Thickness: 0.5 mm
      Material: Aluminiu
      Static Gobo wheel: 10 gobos
  • Rotating Gobos

      Outside diameter: 12.5 mm
      Image diameter: 8.0 mm
      Thickness: 1.1 mm
      Max. Thickness: 3.0 mm
      Rotating Gobo wheel: 7 rotating
      Material: High temperature borofloat or better glass

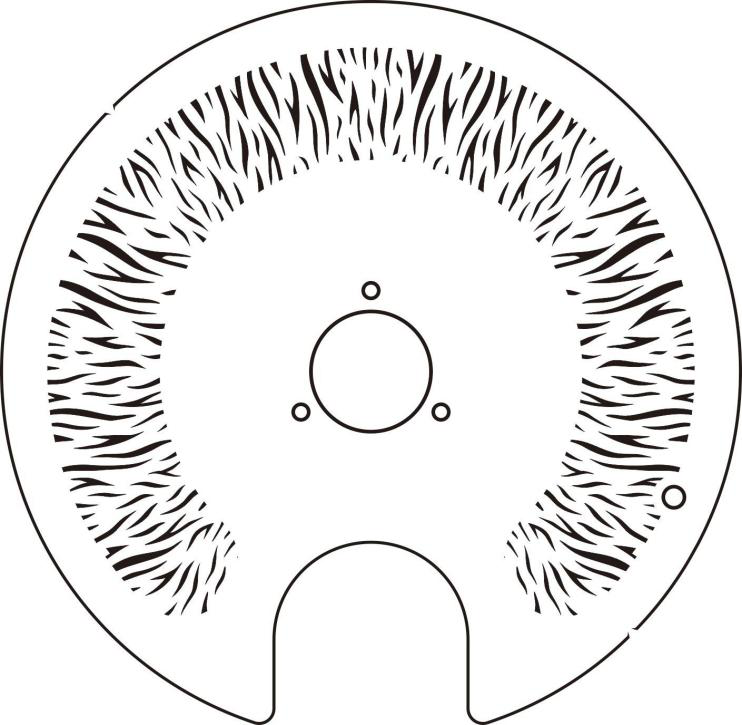

  • Animation Wheel

      1pcs Flame effect Animation Wheel
  • Electrical Specification

      Power supply: Electronic auto-ranging
      Input voltage range: 100--240 V, 50/60 Hz
      Power consumption: 500 W at 230 V / 50 Hz
      Power in connector: powerCON TRUE1
      DMX and RDM data in / out: 3-pin or 5-pin XLR
  • Mechanical Specification

      Height: 597 mm – head in vertical position
      Width: 363mm
      Depth:399 mm
  • Rigging

      Mounting points: 2 pairs of 1 -turn locking points
      2x Omega brackets with 1-turn quick locks
      Universal operating position

gobos & colors
